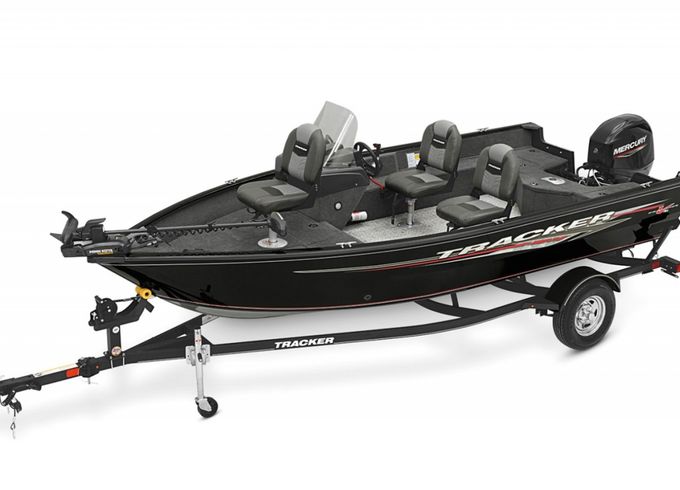

Tracker V16 WT (2020)

Standard | Metric
Length 16' 6''
Beam 7' 4''
Bottom Width 5' 10''
Max. Recommended HP 90 HP
Fuel Capacity 25.5 gal.
Max. Person Capacity 5 persons
Max. Person Weight 655 lbs.
Max. Person, Motor & Gear Weight 1200 lbs.
Interior Depth 25.5''
Transom Height 20.88''
Deadrise At Bow 35 degrees
Deadrise At Transom 20 degrees
Draft 15''
Hull Material 0.100 5052 marine alloy
Average Dry Weight 1169 lbs.
Average Package Weight 2533 lbs.
Package Height 6' 8''
Package Width 7' 6''
Towing Length 22' 1''
Storage Length (W/Outboard Trimmed Down) 19' 10''

Motor
Mercury® FourStroke
60 ELPT FourStroke 28-30 mph

FEATURES
COMFORT, CONVENIENCE & PEACE OF MIND
Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
Limited lifetime hull warranty
NMMA® certified
Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
Easy-fill EPA-compliant fuel tank
Bow & stern eyes
6 cleats including 2 midship cleats
Motor-stop safety lanyard
Fire extinguisher
Horn
Paddle

LIVEWELL SYSTEM
Bow 23-gal. (87.06 L), 40" (1.02 m) aerated livewell w/divider, removable bait bucket, timer, recirculator & pump-out system
500 GPH (1,892.71 LPH) aerator/fill pump
500 GPH (1,892.71 LPH) recirculating pump
Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
Adjustable aerator heads for maximum water control

TROLLING MOTOR
Minn Kota® PowerDrive™ 12V, 42-lb. (19.05 kg) thrust, 54" (1.37 m) shaft, foot-control trolling motor
Thru-bolted trolling motor mount for extra strength

CONSOLE
Lowrance® HOOK2 4x swivel color fishfinder w/Bullet transducer
Single-cable, no-feedback rotary steering
Sleek fiberglass-reinforced console top w/tinted windscreen & built-in drink holder
Illuminated multifunction tachometer/trim gauge & speedometer/fuel gauge
Toggle switches
Black Metallic instrument & switch panel
Mercury® control box
NEW Charcoal console color

INTERIOR
Elevated bow & aft fishing decks w/large bow storage lids for easier access
6 pedestal seat base locations
1 movable driver/fishing seat w/sliding base adjustment plus 2 movable fishing seats, all w/360°-swivel & lock, folding w/sturdy 2-3/8" (6.03 cm) seat pedestals
Carpeted trolling motor deck w/drink holder
2 bow storage compartments
Starboard below-console storage w/NEW lockable angled footrest
2 deep top-loading lockable boxes in the cockpit sides for rods/gear to 8' (2.44 m)
NEW aft center deck step w/lockable storage
Exclusive VERSATRACK® accessory-mounting channel in gunnels
Rod hold-down straps
16-oz. (.45 kg) marine-grade, fishing-friendly carpet on decks & trim
Low-maintenance commercial-grade, chemical-resistant vinyl cockpit floor

PERFORMANCE
Deep deadrise & reversed chines for a smoother, drier ride & better overall performance
Pressed-in strakes for optimal performance
Factory-matched, performance-tested propeller

CONSTRUCTION & EXTERIOR
Color: DIAMOND COAT™ Starlite Charcoal or TRACKER® Black gunnels & hull sides w/Starlite Gray bottom
DIAMOND COAT™ finish features industry-exclusive powder coat & clearcoat for brilliant durability
NEW graphics
All-welded, 2-piece .100 aluminum Deep V hull w/wide beam & stable bottom for a smoother, drier ride in rough waters
Robotically welded, all-aluminum box-beam transom w/corner braces welded in to unitize & strengthen the hull
Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride
Pressed-in hull strakes for enhanced performance
Reverse chine hull design for drier ride & better handling
Transom motor-mounting plate for increased strength & durability
Welded-in longitudinal stringer system for full-length support along the running surface
Pressure-treated floor & deck(s) w/limited lifetime warranty
All compartment lids are flush-mount, carpeted & all-aluminum for structural rigidity, tight fit & long-term durability

ELECTRICAL
500 GPH (1,892.71 LPH) bilge pump
Bow & console courtesy lights
Stowable navigation lights w/NEW LED courtesy light at bow
2 battery trays
Interstate® batteries: 1 cranking & 1 trolling
Console-mounted 12V outlet
Wiring system wrapped in abrasion-resistant protective conduit

TRAILER
Custom-fit, single-axle trailer powder-coated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
Chrome wheels & matching hub covers w/13" (33.02 cm) radial tires
Super Lube hubs for quick & complete hub lubrication
Space-saving swing-away tongue to reduce storage length
Pivot-up locking jack w/swivel wheel
Heavy-duty winch w/nylon strap & bow safety strap
Outboard motor support to reduce hull & transom stress while towing
Heavy-duty upright load guides for easy, centered loading
Carpeted bunks & fender boards to protect hull
Submersible LED lighting
Nylon tie-down straps (supplied w/boat package)
Safety cables
